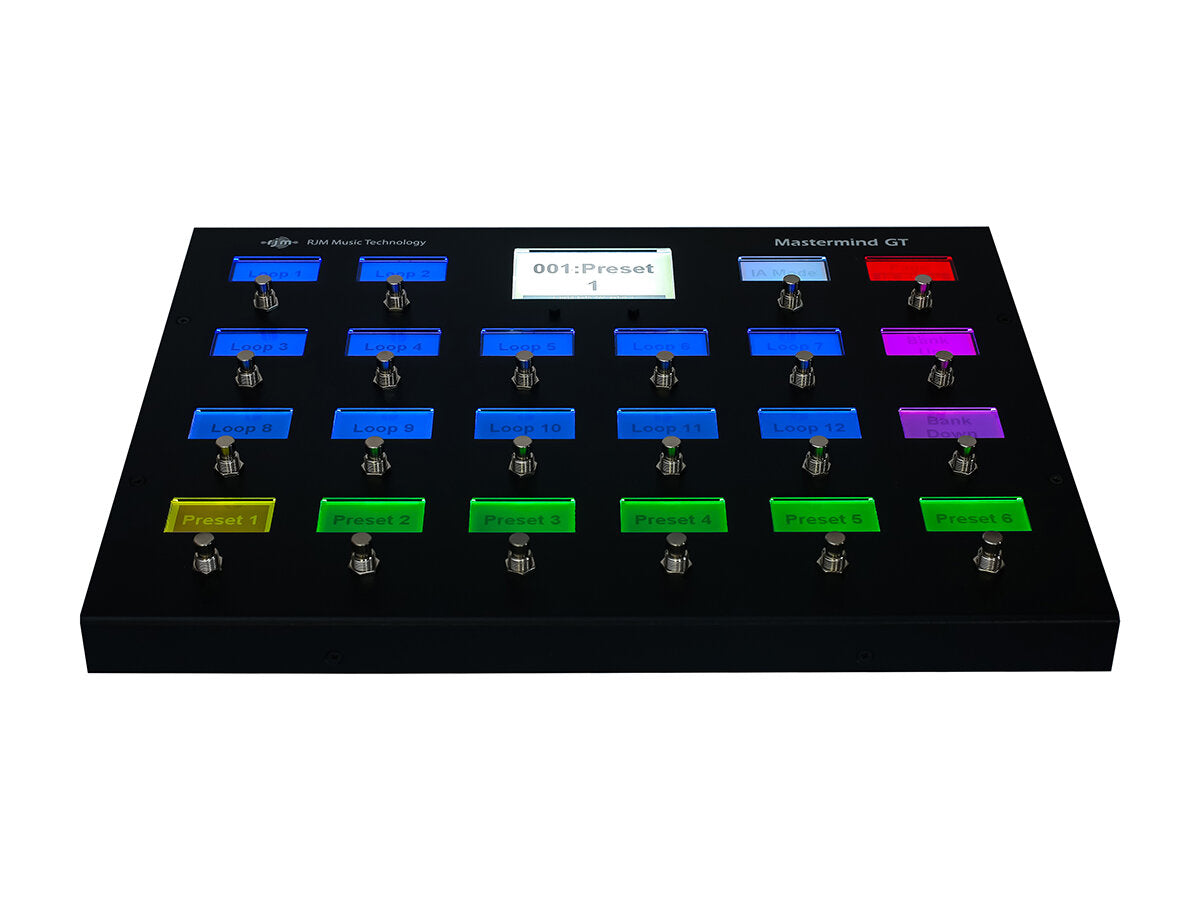

RJM Music - Mastermind GT/22 MIDI Foot Controller

Features:

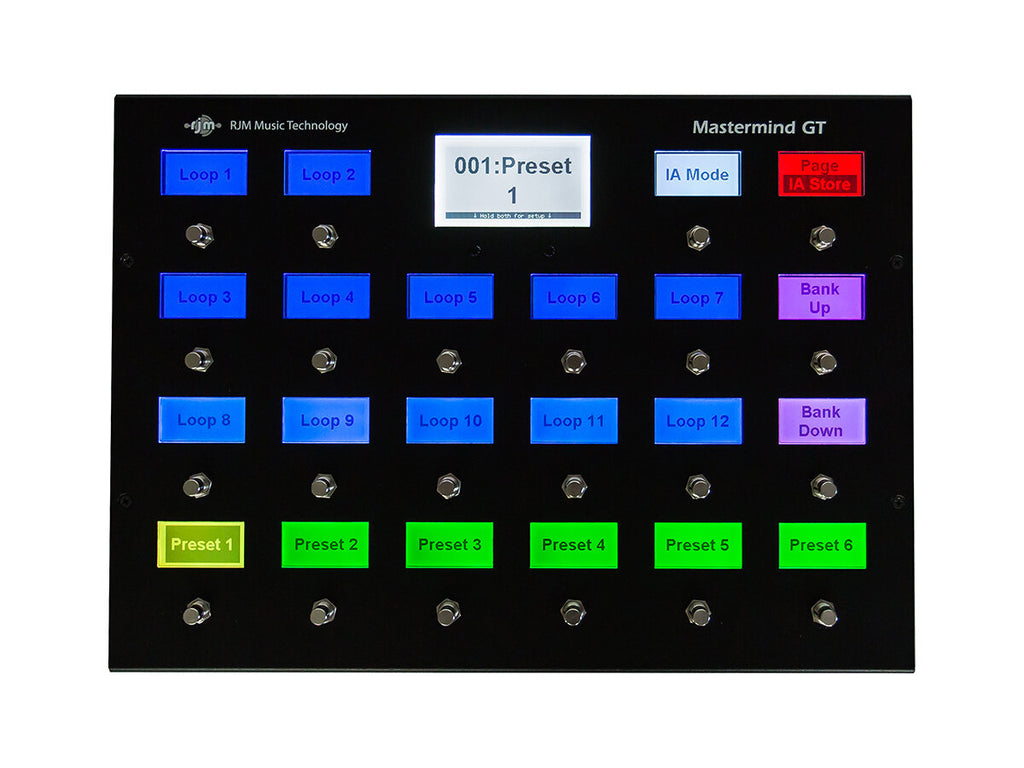

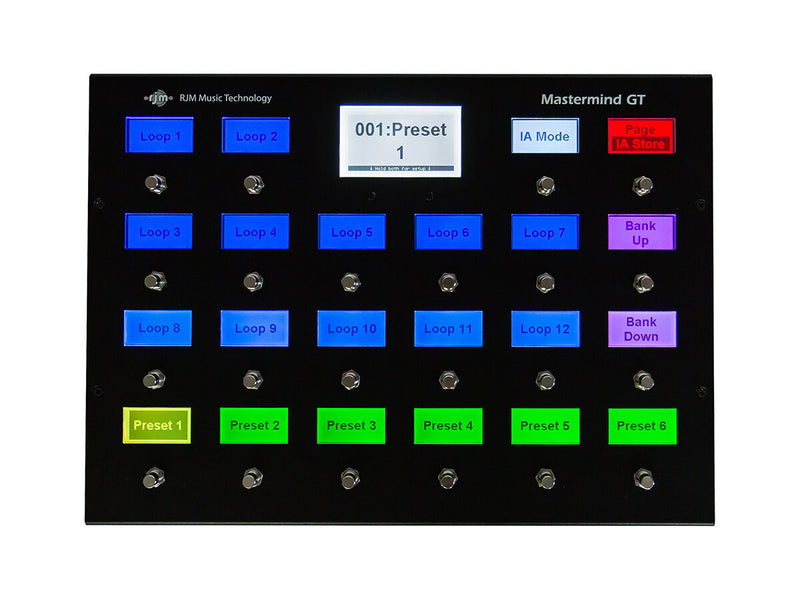

• 22 buttons, with an LCD display over every button. Any button can be set to perform any function (preset, IA, bank up/down, tap tempo, etc.) and the LCD will indicate what the button does. No more board tape!

• A large main LCD display shows the preset number, preset name and/or song name

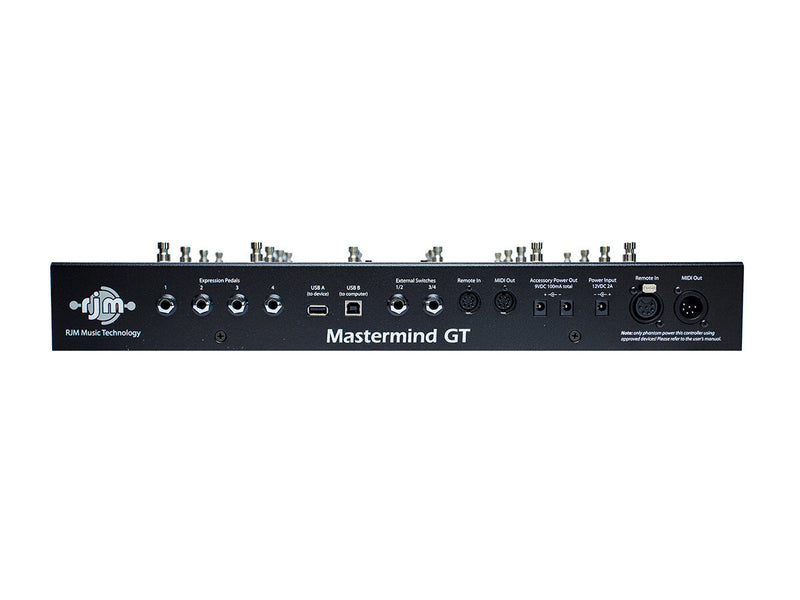

• Standard MIDI In and Out ports, plus 6-pin XLR ports for connecting to our Rack Gizmo, Effect Gizmo and future products

• Phantom power capability allows you to run the Mastermind GT with a single MIDI cable - no separate power supply needed

• More than one Mastermind GT can be connected together and used in multiple locations on stage

• Jacks to connect four expression pedals and four external switches allow for lots of control over connected effects processors and other MIDI devices

• Two auxilliary 9VDC power outlets for tuner, wah pedal, etc

• USB support for direct connection to a PC or Mac

• USB thumb drive input allows you to save and restore settings to a thumb drive

• Editor software for PC and Mac

• Advanced on-board editing capability which makes this controller very easy to program, even without using the editor software

• Built for the rigors of the road with high quality components throughout

Specs:

• Number of instant access buttons, preset buttons and bank size are all user definable - any button can be assigned to any function

• 384 presets, 16 pages of buttons and 16 connected devices

• Preset buttons can send a program change to all 16 devices with a single tap

• IA buttons can send up to 10 messages (any combination of CC, PC or Note)

• Expression pedal inputs: 4. Accepts linear or log pedals using TRS jacks, high or low impedance

• External switches: 2 TRS jacks for a total of 4 switches. Momentary switches required

• 7-pin DIN connectors for MIDI input and output

• 6-pin XLR connectors for MIDI connections to other RJM devices

• USB "A" connector for connection to a USB thumb drive

• USB "B" connector for connection to a PC or Mac

• Phantom power received over DIN and XLR MIDI output jacks

• Dimensions: 19.4 (w) x 14.1 (d) x 3.25 (h) inches / 49.3 x 35.8 x 8.3 cm

• Weight: 10lb / 4.5kg

• Power requirements: 12VDC @ 2A, center positive, 2.1mm ID / 5.5mm OD barrel connector
