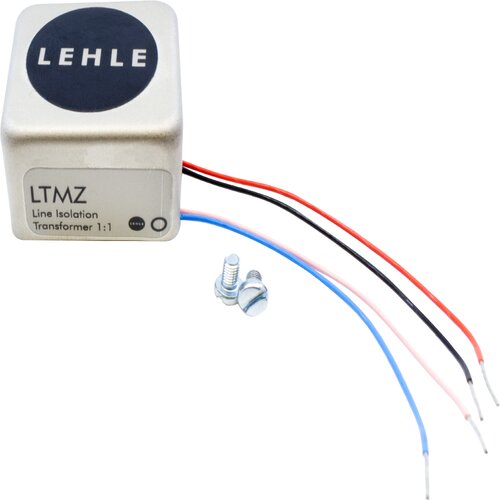

Lehle Transformer MZ-L
The ideal component to avoid hum loops without degrading the sound. It achieves this through galvanic isolation of low to mid impedance audio signal sources. It can be used as an input or output transformer, for balanced or unbalanced signals.
Specifications
- General purpose 1:1 line bridging audio transformer
- Transforms balanced to unbalanced line signals or unbalanced to balanced line signals
- Toroidal ring core design for a extremely low loss, strong coupling and a very low noise
- Frequency response of 3 Hz to 250 kHz - 3 dB
- CMRR of 108 dB at 50 Hz
- Input levels of up to 3.9 V RMS at 20 Hz and 9.8 V RMS at 50 Hz
- Low distortion of 0.002 % at 1 kHz / 0 dBu
- Perfect for low to mid impedance signal sources
- Electrical isolation of 2 kV between secondary and primary winding or windings and shield
- Comes in a magnetic shield can
- Completely potted to avoid microphonic issues
- Comes with leads
