Features:
-

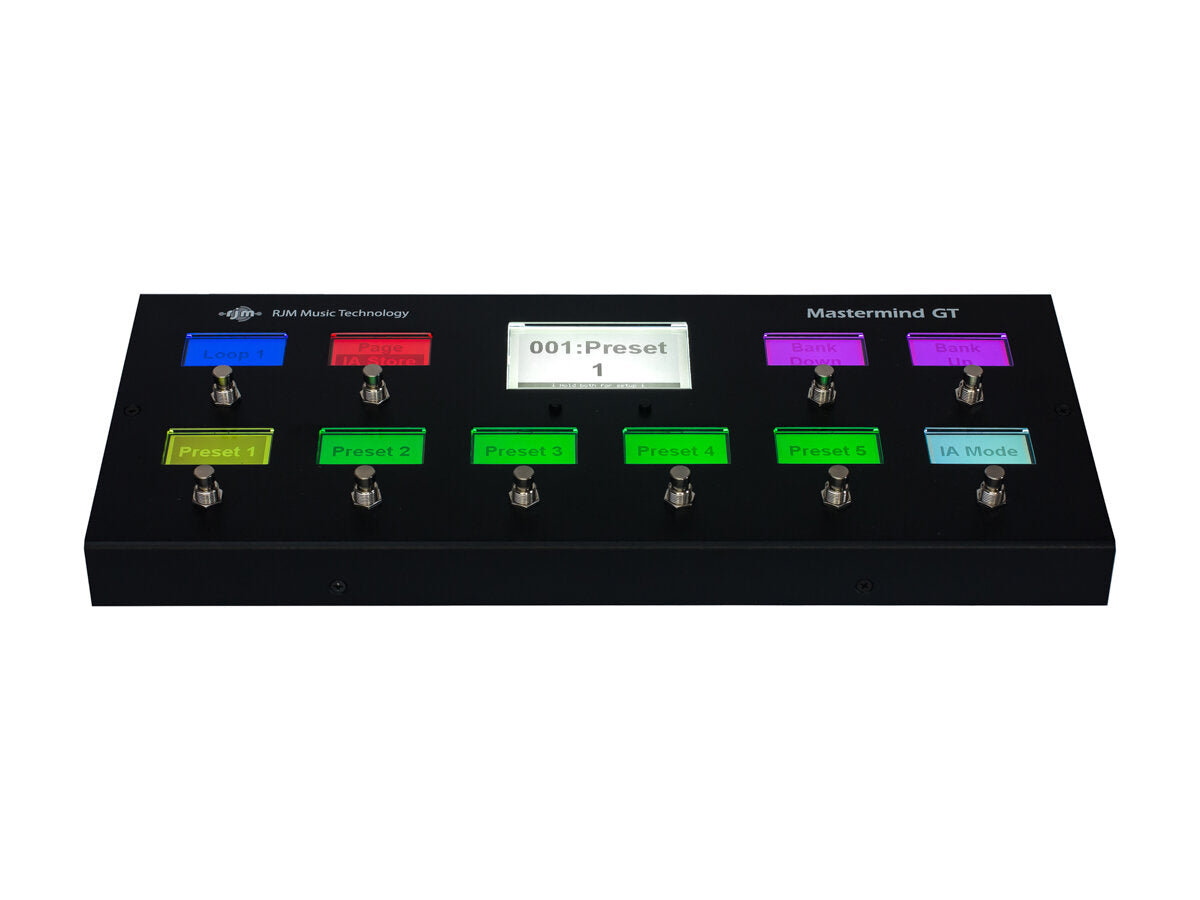

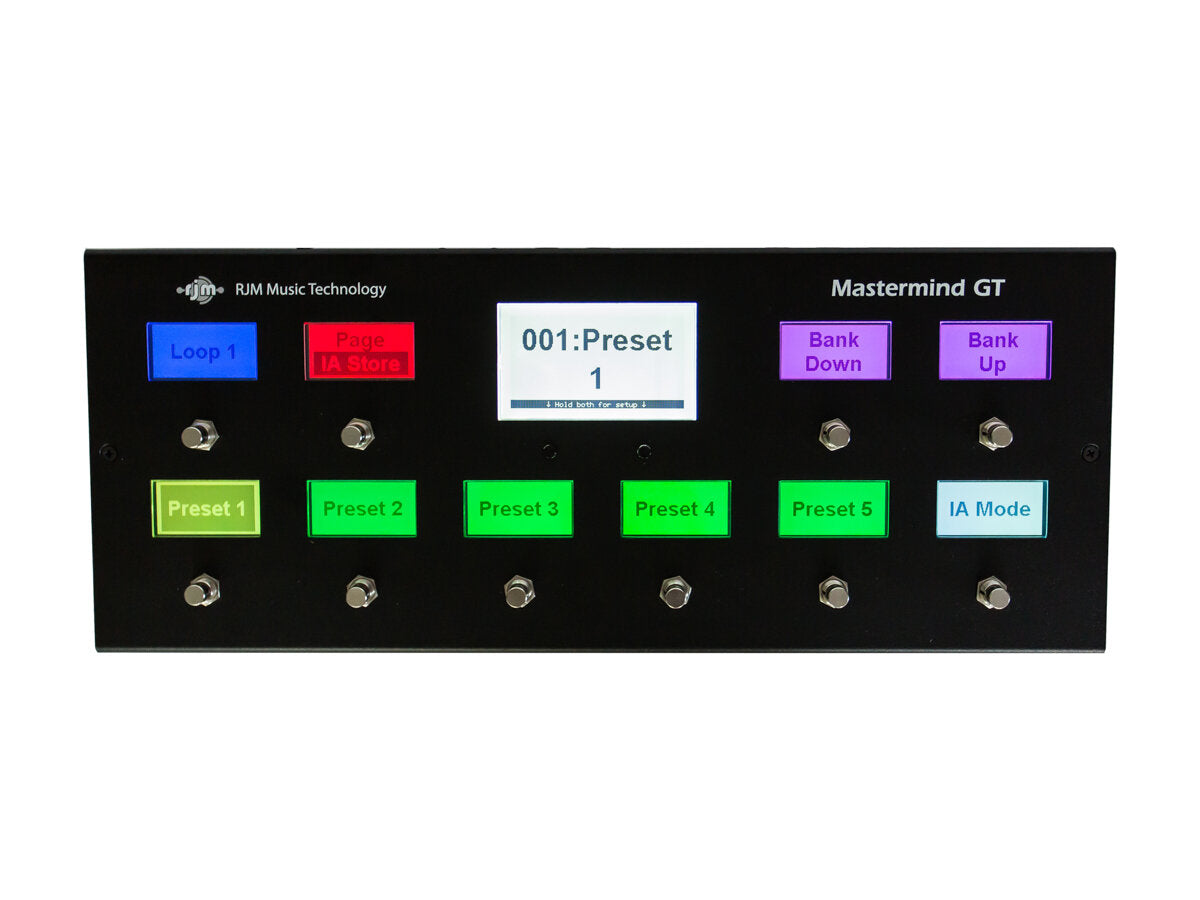

10 buttons, with an LCD display over every button. Any button can be set to perform any function (preset, IA, bank up/down, tap tempo, etc.) and the LCD will indicate what the button does. No more board tape!
-
A large main LCD display shows the preset number, preset name and/or song name
-

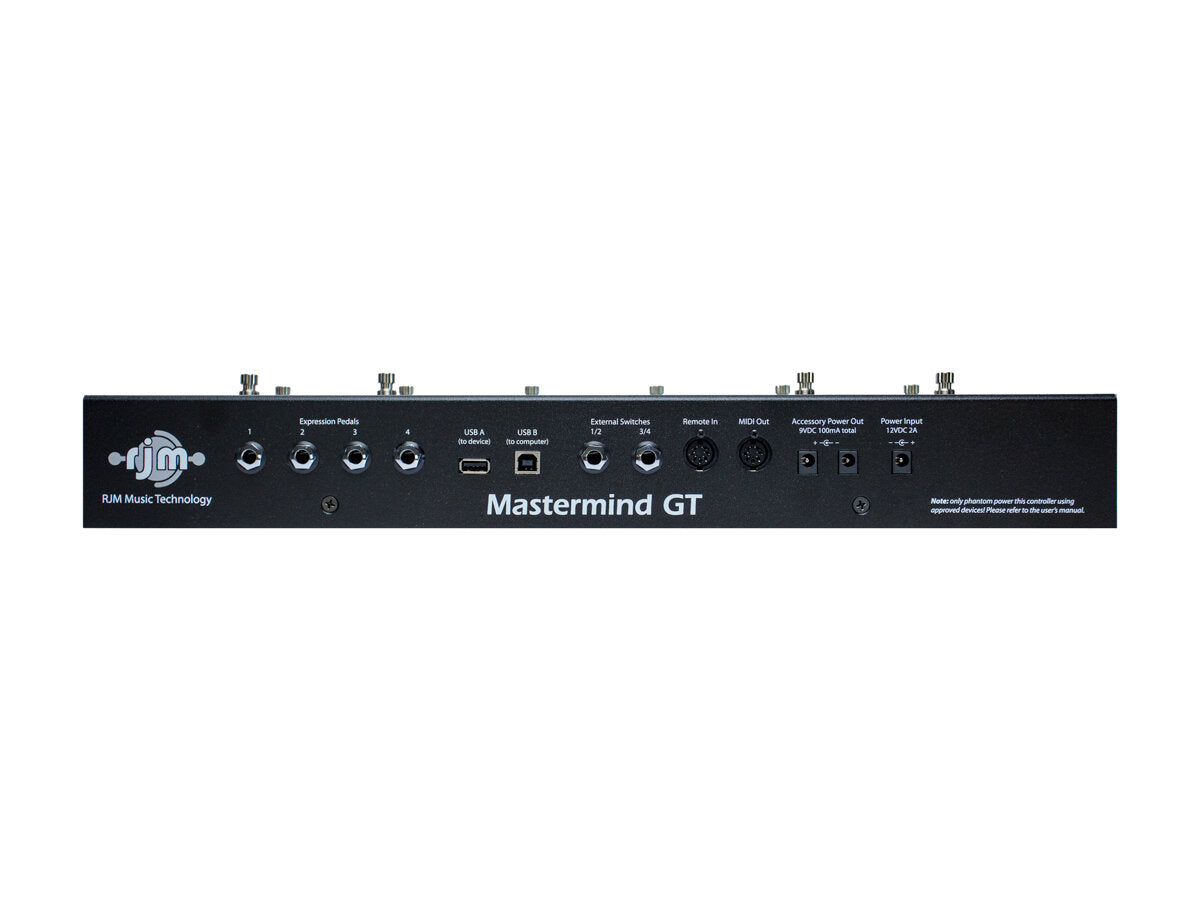

Standard MIDI In and Out ports
-
More than one Mastermind GT can be connected together and used in multiple locations on stage
-
Jacks to connect four expression pedals and four external switches allow for lots of control over connected effects processors and other MIDI devices
-
Two auxilliary 9VDC power outlets for tuner, wah pedal, etc
-
USB support for direct connection to a PC or Mac
-
USB thumb drive input allows you to save and restore settings to a thumb drive
-
Editor software for PC and Mac
-
Advanced on-board editing capability which makes this controller very easy to program, even without using the editor software
Specs:
-
Number of instant access buttons, preset buttons and bank size are all user definable - any button can be assigned to any function
-
384 presets, 16 pages of buttons and 16 connected devices
-
Preset buttons can send a program change to all 16 devices with a single tap
-
IA buttons can send up to 10 messages (any combination of CC, PC or Note)
-
Expression pedal inputs: 4. Accepts linear or log pedals using TRS jacks, high or low impedance
-
External switches: 2 TRS jacks for a total of 4 switches. Momentary switches required
-
Dimensions: 19.4 (w) x 8.1 (d) x 3.25 (h) inches / 49.3 x 20.6 x 8.3 cm
-
Weight: 6lb / 2.7kg
-
Power requirements: 12VDC @ 1A, center positive, 2.1mm ID / 5.5mm OD barrel connector.
