Temple Audio DI MOD PRO Active Stereo DI ''DISCONTINUED''

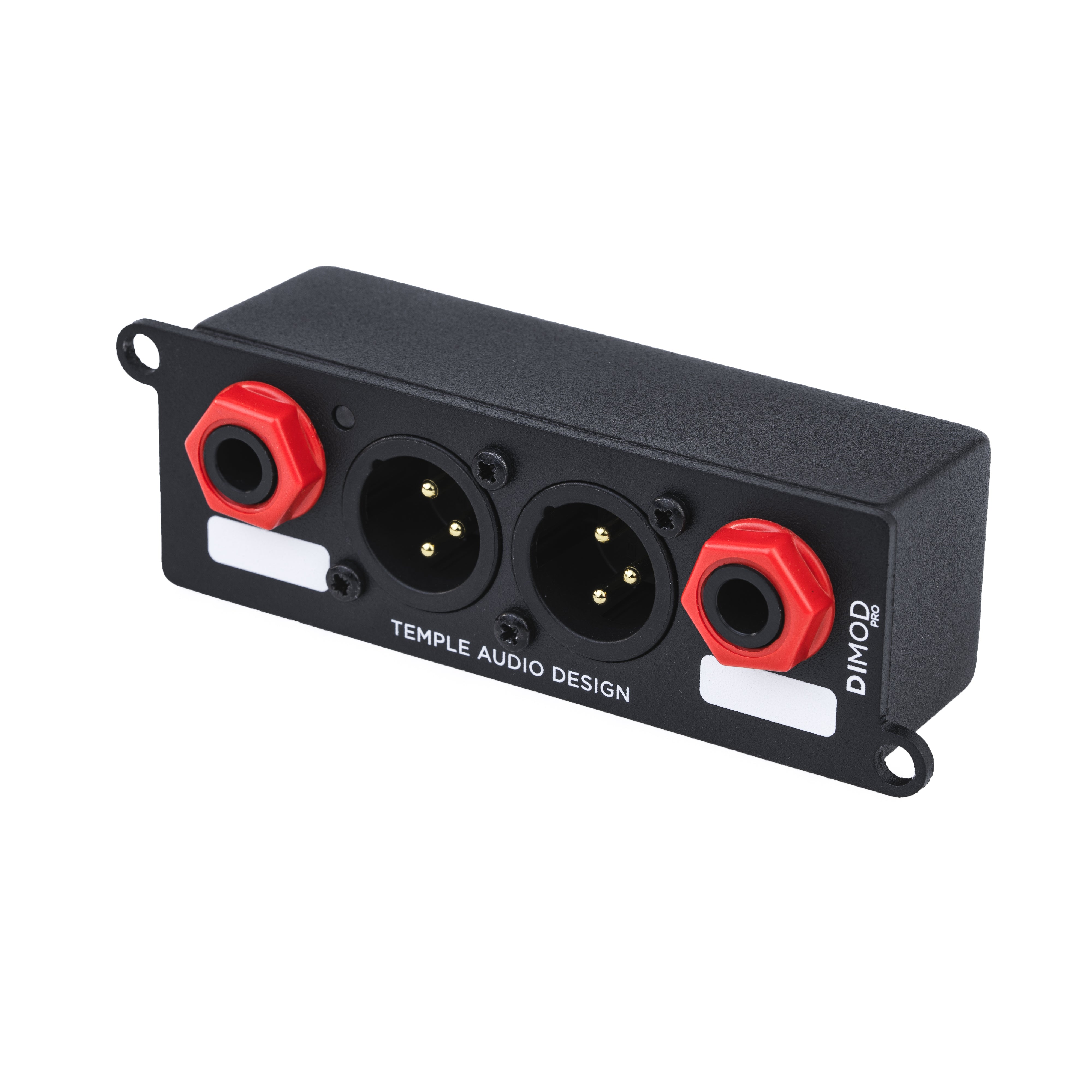

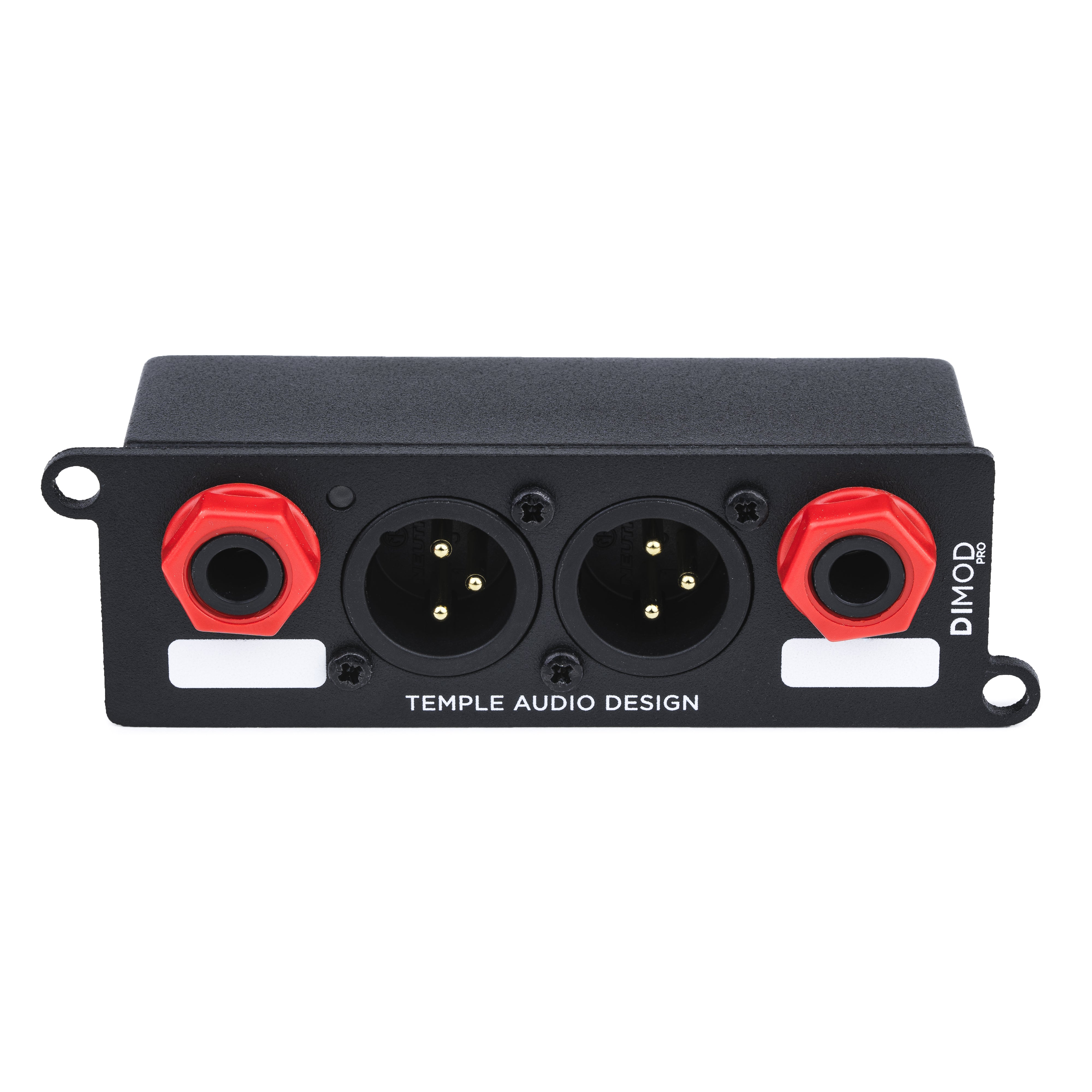

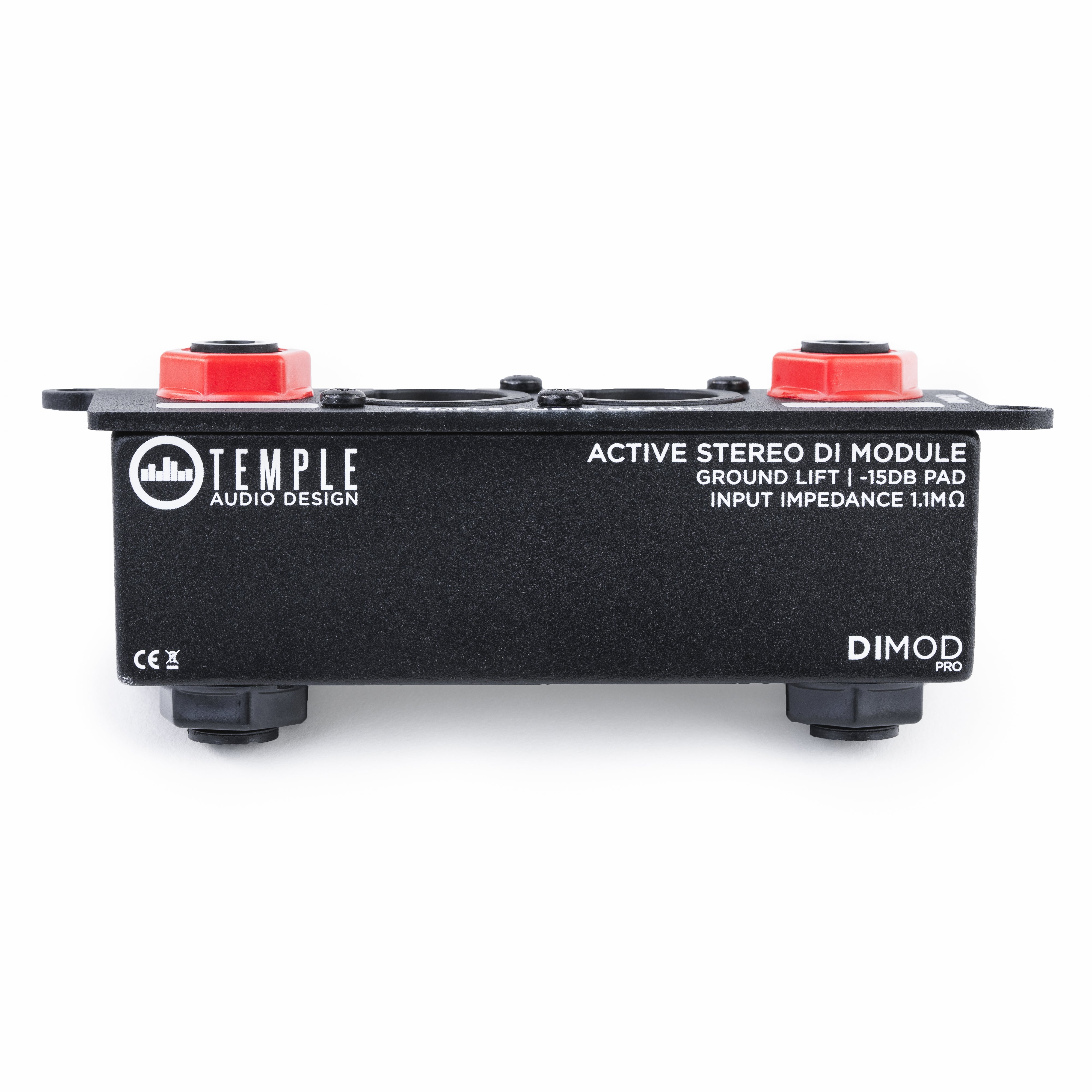

The DI MOD Pro is a high quality, low noise module that mounts in the Modular Endpanel of your Templeboard. It transforms two unbalanced 1/4" instrument or line level signals into two balanced XLR outputs that can be sent to the front of house or a recording interface. The thru jacks (1/4 with red nuts) allow you to send a parallel output to your amplifiers.
Features
• High current audio op-amps keep your signal ultra-clean even over long cable runs
• All Temple MODs install easily with two screws

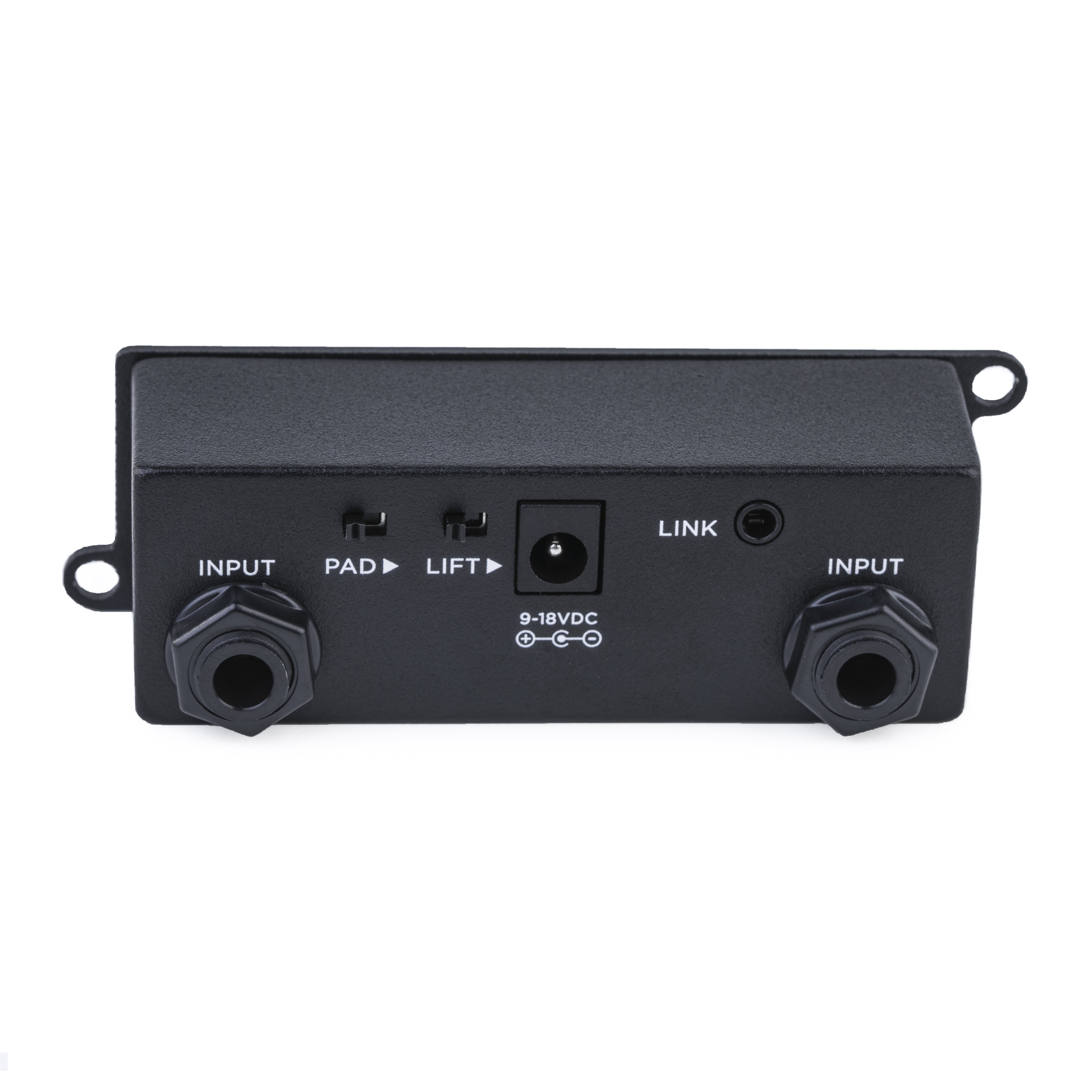

• Ground lift and -15dB switches accessible on the back of the module
• Send parallel 1/4" outputs to your amps alongside the XLR outs
Specifications
Power Requirements: 42mA at 9VDC, 48mA at 18VDC
Frequency Response: 20Hz to 50kHz +/- 0.1 dB into 2.5k load
Input Impedance: 1.1MΩ
Output Impedance: 105Ω
Pad Attenuation: -15dB
